Product Details:

Place of Origin: Jiangsu, China
Brand Name: JIANGSU ZHIJIA STEEL
Certification: ISO9001, CE

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: 7~10working days
Payment Terms: L/C, T/T
Supply Ability: 5000 Ton/Tons per Month
Get Best Price Contact Now

Detail Information

Product Name: Stainless Steel Spring Wire Treatments: 1/2H - H
Diameter: 0.020mm - 12.00mm Standards: JIS G4314, EN10270-3
High Light:

stainless steel wire rods wires

,

0.2 mm stainless steel wire

,

0.3 mm stainless steel wire

Product Description

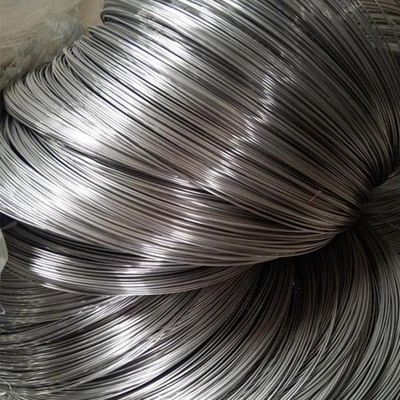

Grade 430 Stainless Steel Wires

400 SERIES STAINLESS STEEL



The 400 series group of stainless steels typically have an 11% chromium and 1% manganese increase, above the 300 series group. This stainless steel series tends to be susceptible to rust and corrosion under some conditions although heat-treating will harden them. The 400 series of stainless steels have a higher carbon content, giving it a martensitic crystalline structure that provides the end product with high-strength and high-wear resistance. The 400 series steels tend to be used in agricultural equipment, gas turbine exhaust silencers, hardware, motor shafts, and more.



Type 430 stainless steel combines good corrosion resistance with good formability and ductility. It is a ferritic, non-hardenable plain Chromium stainless steel with excellent finish quality. Grade 430 also has excellent resistance to nitric attack, which makes it well suited to use in chemical applications.



STAINLESS STEEL FOR SPRING



The corrosion resistance of stainless steels removes the requirement for any additional protective coatings making them the ideal material for springs operating in a range of corrosive conditions, high temperatures and in locations where maintenance and replacement are difficult.



STAINLESS STEEL SPRING WIRE GRADE

European Standards

EN 10088-3

Designation USA   Japan
  Grades Designation AISI-ASTM-SAE UNS
AUSTENITIC GRADES 1.4301 X5CrNi8-10 304 S30400 304
1.431 X10CrNi18-8 302 S30200 302
1.4305 X8CrNiS18-9 303 S30300S 303
1.4306 X2CrNi19-11 304L - -
1.4303 X4CrNi18-9 305 S30600 305
1.4307 X2CrNi18-9 304L S30403 304L
1.4401 X5CrNiMo17-12-2 316 S31600 316
1.4404 X2CrNiMo17-12-2 316L S31603 316L
1.4541 X5CrNiTi18-10 321 S32100 321
1.4567 X3CrNiCu18-9-4 302HQ-304Cu S30430 XM7
1.457 X6CrNiCuS18-9-2 - - -
1.4571 X6CrNiMoTi17-12-2 316Ti S31635 316Ti
1.4597 X8CrMnCuNB17-8-3 204Cu - -
1.4539 X1NiCrMoCu25-20-5 904L NO8904 -
REFRACTORY GRADES 1.4841 X15CrNiSi25-21 314 S31400 -
1.4845 X8CrNi25-21 310-310S S31000 SUH310
FERRITIC GRADES 1.4016 X6Cr 17 430 S43000 430
1.4104 X14CrMoS17 430F S43020 430F
1.4509 X2CrTiNb18 441 S44100 441
1.451 X3CrTi17 439/XM8 S43035 -
1.4511 X3CrNb17 430Cb - -
1.4512 X2CrTi12 409 S40920 -
MARTENSITIC GRADES 1.4005 X12CrS13 416 S41600 416
1.4034 X46Cr13 420C - -
1.4021 X20Cr13 420A S4200 -
1.4035 X46CrS13 - - -



CHEMICAL COMPOSITION

Element C Mn Cr Ni P S Si
409 0.03% 1.00% 10.5~11.7% 0.50% 0.04% 0.02% 1.00%
410 0.08~0.15% 1.00% 11.5~13.5% 0.75% 0.04% 0.03% 1.00%
420 0.15% 1.00% 12.0~14.0% - 0.04% 0.03% 1.00%
430 0.12% 1.00% 16.0~18.0% 0.75% 0.04% 0.03% 1.00%



MECHANICAL PROPERTIES

Grade

Tensile Strength

(MPa)

Min

Yield Strength

0.2% proof (MPa)

Min

Elongation

(%in 50mm)

Min

Brinell(HB)

430



450



205 22 85



SPECIFICATION OF STAINLESS STEEL WIRE

  • ASTM A313M-2003 Stainless Spring Steel Wires
  • JIS G4314-1994 Stainless steel wire for springs
  • DIN17224-1982 stainless spring steel wire and spring steel strip
  • BS2056-1991 Stainless steel wire for mechanical springs
  • EN10270-3:2001 Stainless spring steel wires
  • ISO6931-1-1994(E) Stainless steel for springs Part 1: Steel wire
