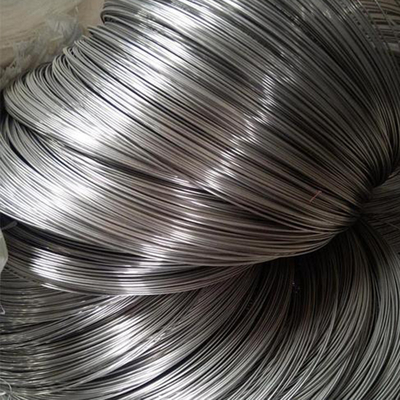

0.5 Mm 0.6 Mm 0.7 Mm 304 Stainless Steel Wire Rope Cable
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | JIANGSU ZHIJIA STEEL |
| Certification: | ISO9001, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 7~10working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Ton/Tons per Month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Spring Wire | Treatments: | 1/2H - H |
|---|---|---|---|
| Diameter: | 0.020mm - 12.00mm | Standards: | JIS G4314, EN10270-3 |
| High Light: | 0.5 mm stainless steel wire,0.6 mm stainless steel wire,0.7 mm stainless steel wire |
||
Product Description
Grade 316Ti Stainless Steel Wires
STAINLESS STEEL WIRE FOR SPRING
The corrosion resistance of stainless steels removes the requirement for any additional protective coatings making them the ideal material for springs operating in a range of corrosive conditions, high temperatures and in locations where maintenance and replacement are difficult.
STAINLESS STEEL SPRING WIRE GRADE
|
European Standards EN 10088-3 |
Designation USA | Japan | |||
| Grades | Designation | AISI-ASTM-SAE | UNS | ||
| AUSTENITIC GRADES | 1.4301 | X5CrNi8-10 | 304 | S30400 | 304 |
| 1.431 | X10CrNi18-8 | 302 | S30200 | 302 | |
| 1.4305 | X8CrNiS18-9 | 303 | S30300S | 303 | |
| 1.4306 | X2CrNi19-11 | 304L | - | - | |
| 1.4303 | X4CrNi18-9 | 305 | S30600 | 305 | |
| 1.4307 | X2CrNi18-9 | 304L | S30403 | 304L | |
| 1.4401 | X5CrNiMo17-12-2 | 316 | S31600 | 316 | |
| 1.4404 | X2CrNiMo17-12-2 | 316L | S31603 | 316L | |
| 1.4541 | X5CrNiTi18-10 | 321 | S32100 | 321 | |
| 1.4567 | X3CrNiCu18-9-4 | 302HQ-304Cu | S30430 | XM7 | |
| 1.457 | X6CrNiCuS18-9-2 | - | - | - | |
| 1.4571 | X6CrNiMoTi17-12-2 | 316Ti | S31635 | 316Ti | |
| 1.4597 | X8CrMnCuNB17-8-3 | 204Cu | - | - | |
| 1.4539 | X1NiCrMoCu25-20-5 | 904L | NO8904 | - | |
| REFRACTORY GRADES | 1.4841 | X15CrNiSi25-21 | 314 | S31400 | - |
| 1.4845 | X8CrNi25-21 | 310-310S | S31000 | SUH310 | |
| FERRITIC GRADES | 1.4016 | X6Cr 17 | 430 | S43000 | 430 |
| 1.4104 | X14CrMoS17 | 430F | S43020 | 430F | |
| 1.4509 | X2CrTiNb18 | 441 | S44100 | 441 | |
| 1.451 | X3CrTi17 | 439/XM8 | S43035 | - | |
| 1.4511 | X3CrNb17 | 430Cb | - | - | |
| 1.4512 | X2CrTi12 | 409 | S40920 | - | |
| MARTENSITIC GRADES | 1.4005 | X12CrS13 | 416 | S41600 | 416 |
| 1.4034 | X46Cr13 | 420C | - | - | |
| 1.4021 | X20Cr13 | 420A | S4200 | - | |
| 1.4035 | X46CrS13 | - | - | - | |
316Ti (1.4571) STAINLESS STEEL
316Ti (UNS S31635) is a titanium stabilised version of 316 molybdenum-bearing austenitic stainless steel.
The 316 alloys are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as 304. They also offer higher creep, stress-rupture and tensile strength at elevated temperature. High carbon Alloy 316 stainless steel can be susceptible to sensitisation, the formation of grain boundary chromium carbides at temperatures between approximately 900 and 1500°F (425 to 815°C) which can result in intergranular corrosion. Resistance to sensitisation is achieved in Alloy 316Ti with titanium additions to stabilise the structure against chromium carbide precipitation, which is the source of sensitisation. This stabilisation is achieved by an intermediate temperature heat treatment, during which the titanium reacts with carbon to form titanium carbides. This significantly reduces susceptibility to sensitisation in service by limiting the formation of chromium carbides. Thus, the alloy can be used for extended periods at elevated temperatures without compromising its corrosion resistance. 316Ti has equvilent corrosion resistance to sensitisation as the low carbon version 316L.
CHEMICAL COMPOSITION
| Element | C | Mn | Si | P | S | Cr | Ni | N | Ti |
| 316 | 0.07% | 2.0% | 1.00% | 0.045% | 0.03% | 16.5~18.5% | 10.0~13.0% | 0.11% | - |
| 316L | 0.03% | 2.0% | 1.00% | 0.045% | 0.02% | 16.5~18.5% | 10.0~13.0% | 0.11% | - |
| 316LN | 0.03% | 2.0% | 1.00% | 0.045% | 0.015% | 16.5~18.5% | 10.0~12.5% | 0.12~0.22% | - |
| 316Ti | 0.08% | 2.0% | 0.75% | 0.045% | 0.03% | 16.0~18.0% | 10.0~14.0% | 0.10% | 5x%(C+N)~0.70% |
MECHANICAL PROPERTIES
| Grade |
Tensile Strength (MPa) |
Yield Strength (MPa)Min
|
Density (g/cm3) |
Brinell (HB)Max |
| 316 | 500~700 | 200 | 8 | 215 |
| 316L | 520~680 | 220 | 8 | 215 |
| 316LN | 580~780 | 205 | 8 | 220 |
| 316Ti | 515Min | 205 | 8 | 209 |
SPECIFICATION OF STAINLESS STEEL WIRE
- ASTM A313M-2003 Stainless Spring Steel Wires
- JIS G4314-1994 Stainless steel wire for springs
- DIN17224-1982 stainless spring steel wire and spring steel strip
- BS2056-1991 Stainless steel wire for mechanical springs
- EN10270-3:2001 Stainless spring steel wires
- ISO6931-1-1994(E) Stainless steel for springs Part 1: Steel wire
