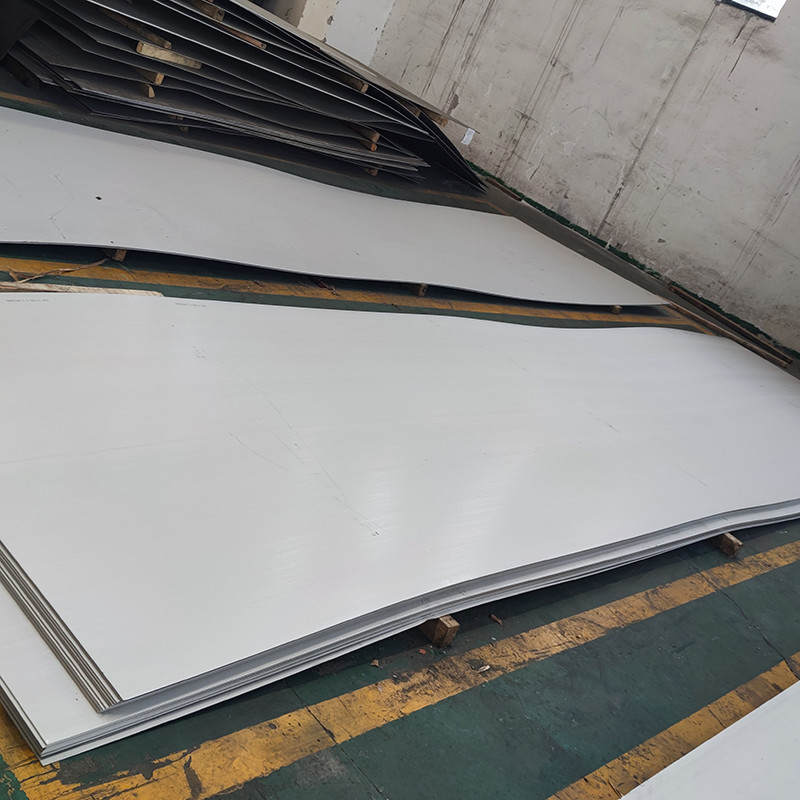

204 314 310s Copper Clad Stainless Steel Sheets 2b 24 Gauge 5 X 10 48 X 96 8' X 4'
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | JIANGSU ZHIJIA STEEL |
| Certification: | ISO9001, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 7~10working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Ton/Tons per Month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Sheet | Type: | Cold Rolled,Hot Rolled |
|---|---|---|---|
| Surface: | No.1,2D,2B,BA,No.4,8k,Tempered | Thickness: | 0.4mm~6mm |
| High Light: | 310s stainless steel sheet,314 stainless steel sheet,steel plate stainless steel sheet |
||
Product Description
Grade 204 Cu Stainless Steel Sheet
200 SERIES STAINLESS STEEL
200 Series stainless steels are not new – In fact they have been around for many years. To date they have traditionally not proved very popular outside the USA. However, since they have a much lower Nickel content than 300 Series Austentics, the very high Nickel price over recent years has led to significantly more interest. Equally, stainless steel producers have an ongoing programme of development designed to enhance existing grades and produce new grades. These new grades are sometimes developed for specific end uses and sometimes to improve upon an existing grade.
DESIGNATIONS
AISI 201 stainless steel corresponds to the following specifications:
UNS20100 / EN1.4372 / JIS SUS 201
AISI 201L stainless steel corresponds to the following specifications:
UNS20103 / EN1.4371
AISI 202 stainless steel corresponds to the following specifications:
UNS20200 / EN1.4373
AISI 204C stainless steel corresponds to the following specifications:
UNS20400 / EN1.4597
CHEMICAL COMPOSITION
| Element | C | Mn | Cr | Ni | Cu |
|
AISI 201/UNS S20100 |
0.15%Max | 5.50~7.50% | 16.0~18.0% | 3.50~5.50% | - |
| AISI 202/UNS S20200 | 0.15%Max | 7.50~10.0% | 17.0~19.0% | 4.00~6.00% | - |
| UNS 20430/204 Cu | 0.15%Max | 6.50~9.0% | 15.5~17.5% | 1.5~3.5% | 2.0~4.0% |
| UNS 20500 | 0.12~0.25% | 14.0~15.5% | 16.5~18.0% |
1.0~1.75% |
- |
MECHANICAL PROPERTIES
| Grade |
Tensile Strength (MPa) Min |
Yield Strength (MPa) Min |
Elongation (%in 50mm) Min |
| 200 series |
655
|
310 | 40 |
200 Series COMMON APPLICATIONS
- Furniture
- Bins
- Cookware & Serving Bowls
- Window Channel Spacers
- Safety Shoes (mid-sole protector)
- Deep drawn kitchen equipment – e.g. Cookware & Sinks
- Hose Clamps
- Trailer Frames
- Industrial Strapping
- Railway Rolling Stock
There is also grade 201LN for welded constructions, structural uses and low temperature applications - Examples include sides & roofs of trains, liquified gas storage vessels, structural members/chassis of railway rolling stock, trucks & trailers, coal handling equipment
