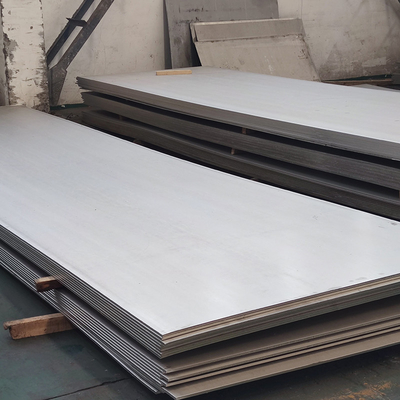

0.7 Mm 0.8 Mm 0.9 Mm 1.2 Mm Bright Annealed Stainless Steel Sheet 2400 X 1200 2500 X 1250
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | JIANGSU ZHIJIA STEEL |
| Certification: | ISO9001, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 7~10working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Ton/Tons per Month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Sheet | Type: | Cold Rolled,Hot Rolled |
|---|---|---|---|
| Surface: | No.1,2D,2B,BA,No.4,8k,Tempered | Thickness: | 0.4mm~6mm |
| High Light: | 0.7 mm stainless steel sheet,0.8 mm stainless steel sheet,0.9 mm stainless steel sheet |
||
Product Description
Grade 420 Stainless Steel Sheet
400 SERIES STAINLESS STEEL
The 400 series group of stainless steels typically have an 11% chromium and 1% manganese increase, above the 300 series group. This stainless steel series tends to be susceptible to rust and corrosion under some conditions although heat-treating will harden them. The 400 series of stainless steels have a higher carbon content, giving it a martensitic crystalline structure that provides the end product with high-strength and high-wear resistance. The 400 series steels tend to be used in agricultural equipment, gas turbine exhaust silencers, hardware, motor shafts, and more.
Type 420 is a martensitic stainless steel that provides good corrosion resistance similar to 410 plus increased strength and hardness. It is magnetic in both the annealed and hardened conditions. Maximum corrosion resistance is attained only in the fully hardened condition. It is never used in the annealed condition.
CHEMICAL COMPOSITION
| Element | C | Mn | Cr | Ni | P | S | Si |
| 409 | 0.03% | 1.00% | 10.5~11.7% | 0.50% | 0.04% | 0.02% | 1.00% |
| 410 | 0.08~0.15% | 1.00% | 11.5~13.5% | 0.75% | 0.04% | 0.03% | 1.00% |
| 420 | 0.15% | 1.00% | 12.0~14.0% | - | 0.04% | 0.03% | 1.00% |
| 430 | 0.12% | 1.00% | 16.0~18.0% | 0.75% | 0.04% | 0.03% | 1.00% |
MECHANICAL PROPERTIES
| Grade |
Tensile Strength (MPa) Min |
Yield Strength 0.2% proof (MPa) Min |
Elongation (%in 50mm) Min |
Brinell(HB) Max |
| 420(Annealed) |
655
|
345 | 25 | 241 |
420 COMMON APPLICATIONS
The typical applications of grade 420 stainless steels are listed below:
- Shear blades
- Needle valves
- Surgical equipment
- Cutlery
