Monel 400 is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, alloy 400 is rapidly attacked by nitric acid and ammonia systems.
Main Products:
Sheet,Plate,Bar,Wire
Applications:
Marine engineering
Chemical and hydrocarbon processing equipment
Gasoline and freshwater tanks
Crude petroleum stills
De-aerating heaters
Boiler feed water heaters and other heat exchangers
Valves, pumps, shafts, fittings, and fasteners
Industrial heat exchangers
Chlorinated solvents
Crude oil distillation towers
 |

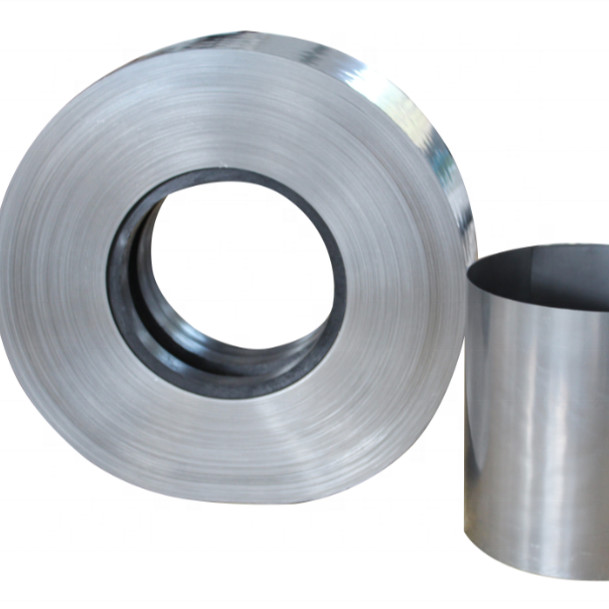

Monel K500 Sheet N 05500 Nickel Alloy Steel Coil Strip
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | JIANGSU ZHIJIA STEEL |
| Model Number: | M290-50A, M350-50A |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Industry seaworthy wooden package or as customer's requirements |
| Supply Ability: | 5000 Ton/Tons per Month |
|
Detail Information |
|||
| NAME: | Monel K500 Sheet N 05500 Nickel Alloy Steel Coil Strip | Type: | Nickel Strip, |
|---|---|---|---|
| Ni: | Ni MIn63%,Cu 28%-34%,Fe Max2.5% | Technique: | Hot Rolled, Hot Forged, Cold Drawn |
| Shape: | Sheet,Pipe,Bar,Coil,Strip | Standard: | ASTM AISI JIS DIN GB |
| SURFACE: | Anodized,Brushed,Mill Finished,Polished | Edge: | Ni,Cu,Fe, C,Mn,Si,S, High Precision Monel K500 N 05500 |
| High Light: | monel k500 alloy steel coil strips 0.5x100,alloy steel coil strips 0.5x100,monel k500 sheet N 05500 0.5x100 |
||
Product Description
Product Description:
High precision Monel K500 N 05500 Nickel alloy steel coil strip
400 is coppernickelalloy,has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.
It is widely used on many aspects,like valve and pump parts,electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment,propeller shafts, marine fixtures and fasteners,boiler feedwater heaters and other heat exchangers.
Monel 400 International brand:
Chemical Composition:
| Grade | Ni% | Cu% | Fe% | Mn% | C% | Si% | S% |
| Monel 400 | Min 63 | 28-34 | Max 2.5 | Max 2.0 | Max 0.3 | Max 0.5 | Max 0.024 |
Physical Properties:
| Grade | Density | Melting Point |
| Monel 400 | 8.83 g/cm3 | 1300°C-1390°C |
Mechanical Properties:
Production Standard:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
