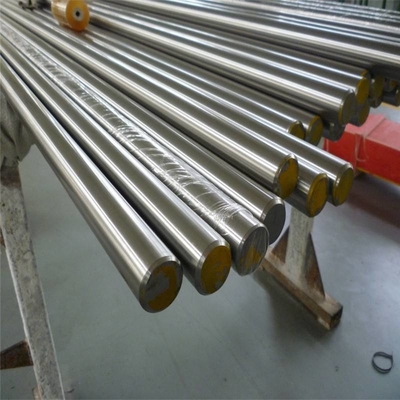

310 316 422 430 416 Polished Stainless Steel Bar Rod 3mm 6mm 10mm
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | JIANGSU ZHIJIA STEEL |
| Certification: | ISO9001, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 7~10working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Ton/Tons per Month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Round Bar | Type: | Cold Rolled,Hot Rolled |
|---|---|---|---|
| Surface: | No.1,2D,2B,BA,No.4,8k,Tempered | Diameter: | 3mm~300mm |
| Highlight: | 430 stainless steel round bar,422 stainless steel round bar,416 stainless steel round bar |
||
Product Description
Grade 430 Stainless Steel Round Bar
400 SERIES STAINLESS STEEL
The 400 series group of stainless steels typically have an 11% chromium and 1% manganese increase, above the 300 series group. This stainless steel series tends to be susceptible to rust and corrosion under some conditions although heat-treating will harden them. The 400 series of stainless steels have a higher carbon content, giving it a martensitic crystalline structure that provides the end product with high-strength and high-wear resistance. The 400 series steels tend to be used in agricultural equipment, gas turbine exhaust silencers, hardware, motor shafts, and more.
Type 430 stainless steel combines good corrosion resistance with good formability and ductility. It is a ferritic, non-hardenable plain Chromium stainless steel with excellent finish quality. Grade 430 also has excellent resistance to nitric attack, which makes it well suited to use in chemical applications.
CHEMICAL COMPOSITION
| Element | C | Mn | Cr | Ni | P | S | Si |
| 409 | 0.03% | 1.00% | 10.5~11.7% | 0.50% | 0.04% | 0.02% | 1.00% |
| 410 | 0.08~0.15% | 1.00% | 11.5~13.5% | 0.75% | 0.04% | 0.03% | 1.00% |
| 420 | 0.15% | 1.00% | 12.0~14.0% | - | 0.04% | 0.03% | 1.00% |
| 430 | 0.12% | 1.00% | 16.0~18.0% | 0.75% | 0.04% | 0.03% | 1.00% |
MECHANICAL PROPERTIES
| Grade |
Tensile Strength (MPa) Min |
Yield Strength 0.2% proof (MPa) Min |
Elongation (%in 50mm) Min |
Brinell(HB) |
| 430 |
450
|
205 | 22 | 85 |
430 COMMON APPLICATIONS
The typical applications of grade 430 stainless steels are listed below:
- Dishwasher linings
- Automotive trim
- Range hoods
- Drawn/formed parts
- Industrial roofing & wall cladding
- Utensils
- Handling equipment for mining
- Heat-resisting applications
