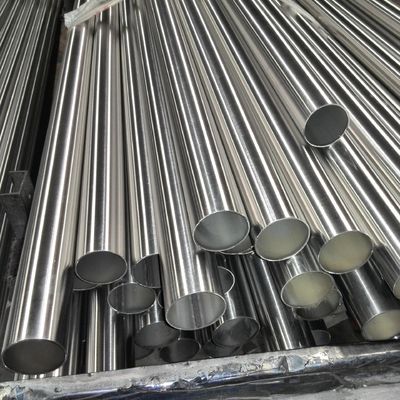

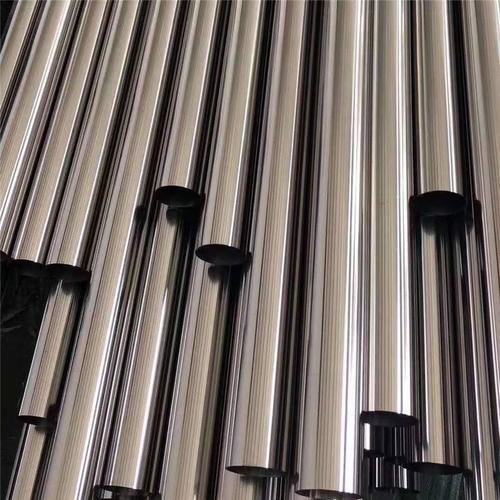

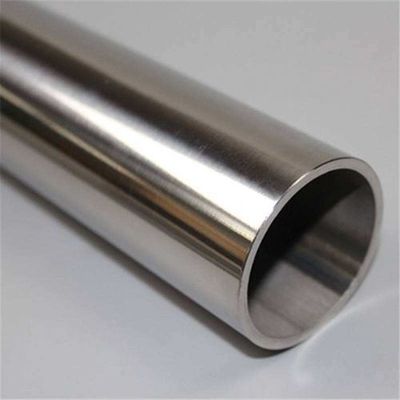

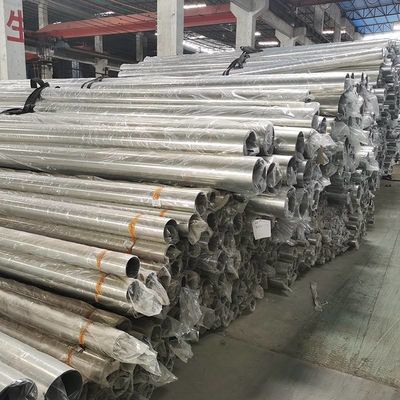

Schedule 80 316 Stainless Steel Round Tube Pipe Seamless Finish Polished A312 Tp310 Tp321h
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | JIANGSU ZHIJIA STEEL |
| Certification: | ISO9001, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 7~10working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Ton/Tons per Month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Round Pipe | Technique: | Cold Rolled,Hot Rolled |
|---|---|---|---|
| Type: | Seamless Pipe(SMLS) | Surface: | No.1,2D,2B,BA,No.4,8k,Tempered |
| High Light: | Stainless Steel Round Tube Pipe,sch 80 stainless steel pipe,Industrial Stainless Steel Round Tubes |
||
Product Description
Grade 316 SMLS Stainless Steel Seamless Pipe
316(1.4401)/316L(1.4404)/316LN(1.4406) SEAMLESS&WELDED PIPE
The main difference between AISI 316 (1.4401) stainless steel and AISI 316L (1.4404) stainless steel is the carbon content. The "L" stands for "low carbon" content.
Due to the lower carbon amount, AISI 316L (1.4404) stainless steel has a reduced risk of sensitization (grain boundary carbide precipitation). Yet, at the same time, it loses some of its strength.
AISI 316LN (1.4406) stainless steel is alloyed with nitrogen to compensate for the loss of strength.
STOCKING PROGRAM
- Size Range : 1/4″ ~ 36″ NPS (Larger sizes available upon request)
- Schedules : 10, 10s, 40, 40s, 80, 80s, 120, 160 (Custom wall thicknesses available upon request)
- Stainless Steel Grades : 304, 304L, 316, 316L, 316L, 317L, 321 , 347
- Special Alloys : 2205, 254SMo, Monel, Inconel
- Chrome Moly : P5, P9, P11, P22, P91
- Standards : ASTM / ASME
CHEMICAL COMPOSITION
| Element | C | Mn | Si | P | S | Cr | Ni | N | Fe |
| 316 | 0.07% | 2.0% | 1.00% | 0.045% | 0.03% | 16.5~18.5% | 10.0~13.0% | 0.11% | Remainder |
| 316L | 0.03% | 2.0% | 1.00% | 0.045% | 0.02% | 16.5~18.5% | 10.0~13.0% | 0.11% | Remainder |
| 316LN | 0.03% | 2.0% | 1.00% | 0.045% | 0.015% | 16.5~18.5% | 10.0~12.5% | 0.12~0.22% | Remainder |
MECHANICAL PROPERTIES
| Grade |
Tensile Strength (MPa) |
Yield Strength (MPa)Min
|
Density (g/cm3) |
Brinell (HB)Max |
| 316 | 500~700 | 200 | 8 | 215 |
| 316L | 520~680 | 220 | 8 | 215 |
| 316LN | 580~780 | 205 | 8 | 220 |
ADVANTAGES OF WELDED
- Welded pipes are typically more cost effective than their seamless equivalents.
- Welded pipes are usually more readily available than seamless. The longer lead time required for seamless pipes can not only make timing problematic, but it also allows more time for the price of the materials to fluctuate.
- The wall thickness of welded pipes is generally more consistent than that of seamless pipes.
- The internal surface of welded tubes can be checked before manufacturing, which isn’t possible with seamless.
ADVANTAGES OF WELDED
- The main perceived advantage of seamless pipes is that they don’t have a weld seam.
- Seamless pipes provide peace of mind. Although there should be no issues with the seams of welded pipes supplied by reputable manufacturers, seamless pipes prevent any possibility of a weak seam.
- Seamless pipes have better ovality or roundness, than welded pipes.
